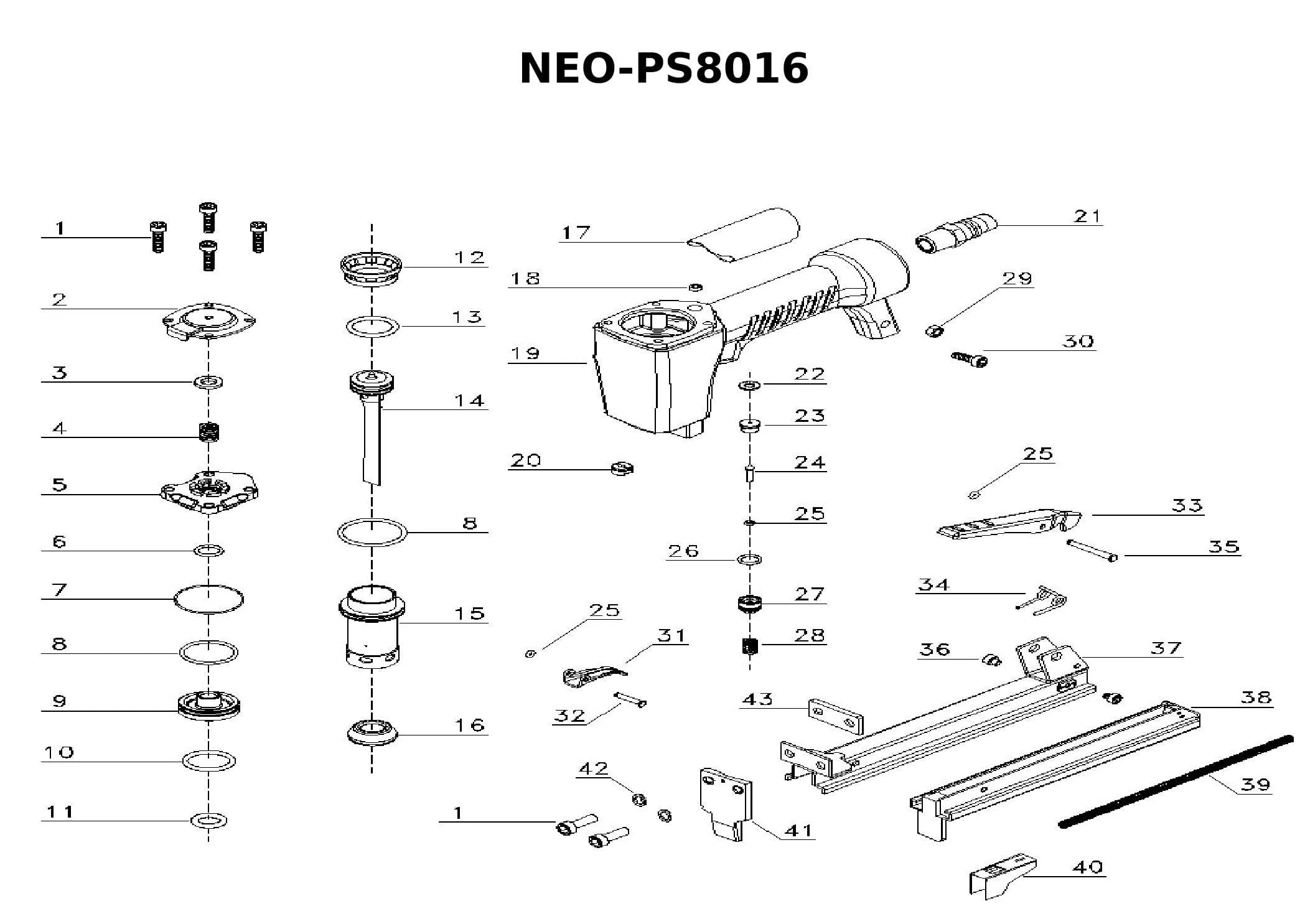

Blow Up
Spares

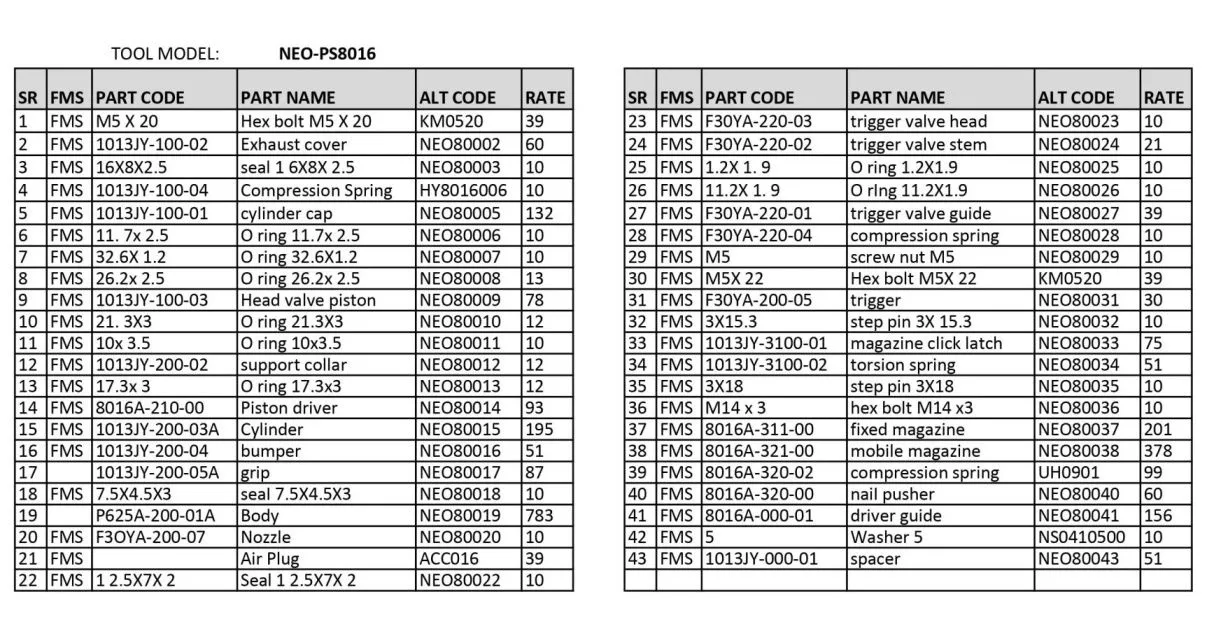

| TOOL MODEL: | NEO-PS8016 | |||
| SR | FMS | PART CODE | PART NAME | ALT CODE |
| 1 | FMS | M5 X 20 | Hex bolt M5 X 20 | KM0520 |
| 2 | FMS | 1013JY-100-02 | Exhaust cover | NEO80002 |
| 3 | FMS | 16X8X2.5 | seal 1 6X8X 2.5 | NEO80003 |
| 4 | FMS | 1013JY-100-04 | Compression Spring | HY1013J006 |
| 5 | FMS | NEO80005 | cylinder cap | |
| 6 | FMS | 11. 7x 2.5 | O ring 11.7x 2.5 | NEO80006 |
| 7 | FMS | 32.6X 1.2 | O ring 32.6X1.2 | NEO80007 |
| 8 | FMS | 26.2x 2.5 | O ring 26.2x 2.5 | NEO80008 |
| 9 | FMS | NEO80009 | Head valve piston | |
| 10 | FMS | 21. 3X3 | O ring 21.3X3 | NEO80010 |
| 11 | FMS | 10x 3.5 | O ring 10x3.5 | NEO80011 |
| 12 | FMS | 1013JY-200-02 | support collar | NEO80012 |
| 13 | FMS | 17.3x 3 | O ring 17.3x3 | NEO80013 |
| 14 | FMS | NEO80014 | Piston driver | |
| 15 | FMS | NEO80015 | Cylinder | |
| 16 | FMS | 1013JY-200-04 | bumper | NEO80016 |
| 17 | NEO80017 | grip | ||
| 18 | FMS | 7.5X4.5X3 | seaI 7.5X4.5X3 | NEO80018 |
| 19 | NEO80019 | Body | ||
| 20 | FMS | F3OYA-200-07 | Nozzle | NEO80020 |
| 21 | FMS | ACC016 | Air Plug | |
| 22 | FMS | 1 2.5X7X 2 | Seal 1 2.5X7X 2 | NEO80022 |
| 23 | FMS | F30YA-220-03 | trigger valve head | NEO80023 |
| 24 | FMS | F30YA-220-02 | trigger valve stem | NEO80024 |
| 25 | FMS | 1.2X 1. 9 | O ring 1.2X1.9 | NEO80025 |
| 26 | FMS | 11.2X 1. 9 | O rIng 11.2X1.9 | NEO80026 |
| 27 | FMS | F30YA-220-01 | trigger valve guide | NEO80027 |
| 28 | FMS | F30YA-220-04 | compression spring | NEO80028 |
| 29 | FMS | M5 | screw nut M5 | NEO80029 |
| 30 | FMS | M5X 22 | Hex bolt M5X 22 | KM0520 |
| 31 | FMS | F30YA-200-05 | trigger | NEO80031 |
| 32 | FMS | 3X15.3 | step pin 3X 15.3 | NEO80032 |
| 33 | FMS | NEO80033 | magazine click latch | |
| 34 | FMS | 1013JY-3100-02 | torsion spring | NEO80034 |
| 35 | FMS | 3X18 | step pin 3X18 | NEO80035 |
| 36 | FMS | M14 x 3 | hex bolt M14 x3 | NEO80036 |
| 37 | FMS | NEO80037 | fixed magazine | |
| 38 | FMS | NEO80038 | mobile magazine | |
| 39 | FMS | UH0901 | compression spring | |
| 40 | FMS | 8016A-320-00 | naiI pusher | NEO80040 |
| 41 | FMS | NEO80041 | driver guide | |
| 42 | FMS | 5 | Washer 5 | S0410500 |
| 43 | FMS | 1013JY-000-01 | spacer | NEO80043 |
One Sheeter
Application
|
To fix 3mm / 4mm veneer to wooden frame |
|
|
To fix upholstery & elastic band |
|
|
To fix upholstery to chair / stool base |
|
|
To fix fabric to MDF, particle board or ply tiles |
|
|
To fix rubber pad to wooden runner base |
|
|
To join wooden strips together |
|
|
To fix netted pockets |
|
|
To fix sole to the heel |
|
|
To fix canvas to wooden frame |
|
|
To fix screens onto the wooden frame |
